Brand：SHARP

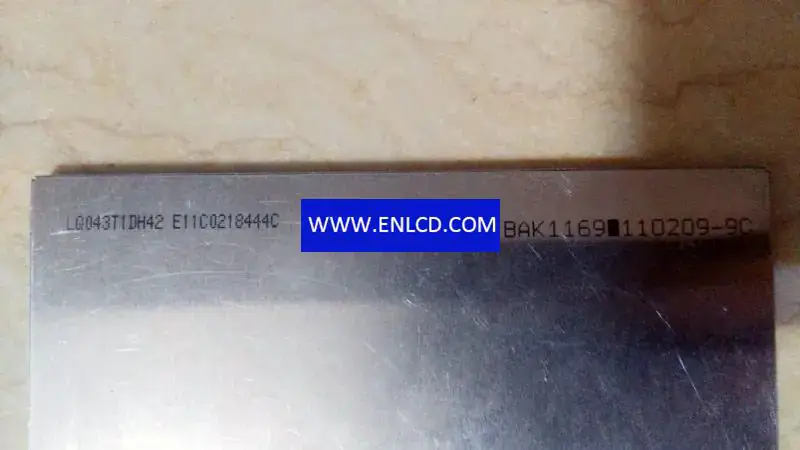

Model：LQ043T1DH422 Compatible
Diagonal Size：4.3 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：480×272(RGB)[WQVGA]
Configuration： RGB Horizontal Stripe
Active Area：95.04(H)×53.856(V) mm
Outline Dim.：105.5(H)×67.2(V)×4.45(D) mm
Bezel Area：97.2(H)×56.0(V) mm
Treatment：Antiglare, Hard coating (2H)
Luminance：360 cd/m2 (Typ.)
Contrast Ratio： 300:1 (Typ.) (TM)
View Direction：-
Response Time：8/8 (Typ.)(Tr/Td)
Viewing Angle：45/45/20/55 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 48%(CIE1931)
Light Source：WLED[9S1P], 10K hours, W/O Driver
Weight： 60.0g (Typ.)
Designed For： Portable Navigation, Pocket TV, MP4 PMP,
Frame Rate：60Hz
Touch Panel：Embeded (4-wire Resistive)
Interface Type： 67 pinsParallel RGB (1 ch, 6-bit) + SPI, FPC
Power Supply：1.8/(3.3/2.8)V (Typ.)(VDDIO/VCI)
Environment： Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
