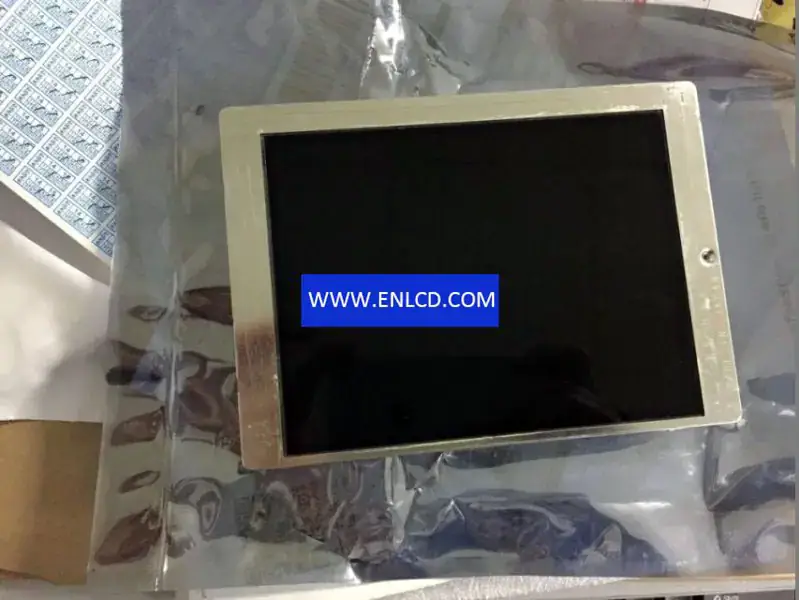

Manufacturer：SHARP
Model Name：LQ057Q3DC02
Screen Size：5.7 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：320(RGB)×240 (QVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 115.2 × 86.4 (H×V)
Outline(mm)：144 × 104.6× 13.5 (H×V×D)
Bezel Area(mm)： 121.0 × 92.2 (H×V)
Treatment： Hard coating (3H), Antireflection
Luminance：350 cd/m2 (Typ.)
Contrast Ratio：60 : 1 (Min.) (TM)
Viewing Angle： 65/65/65/40 (Typ.)(CR≥5)
Response： 30/50 (Typ.)(Tr/Td) ms
Good View at： 12 o'clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K
Backlight：1 pcsCCFL, 50K hours, No Driver
Mass： –
Used for： Industrial Application,
Refresh Rate：-
Touchscreen：Without
Signal Type：Parallel RGB (1 ch, 6-bit), Connector, 33 pins
Voltage Supply：3.3V (Typ.)(VCC)
Max. Ratings：Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
