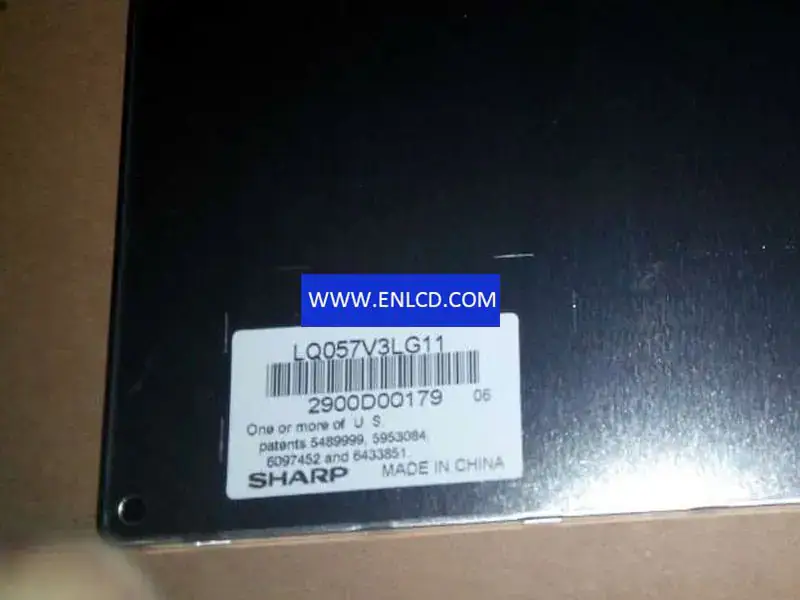

Panel Brand：SHARP
Panel Model：LQ057V3LG11
Panel Size：5.7 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：640(RGB)×480 , VGA
Pixel Format：RGB Vertical Stripe
Display Area：115.2(W)×86.4(H) mm
Bezel Opening：121.0(W)×92.2(H) mm
Outline Size：144(W)×104.6(H)×12.8(D) mm
Surface：Antiglare, Hard coating (2H)
Brightness：350 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：12 o’clock
Response Time：30 (Typ.)(Tr+Td)
Display Colors：262K
Lamp Type：WLED, With LED Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 190g (Max.)
Application： Industrial Application,
Signal Interface： LVDS (1 ch, 6-bit), 20 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
