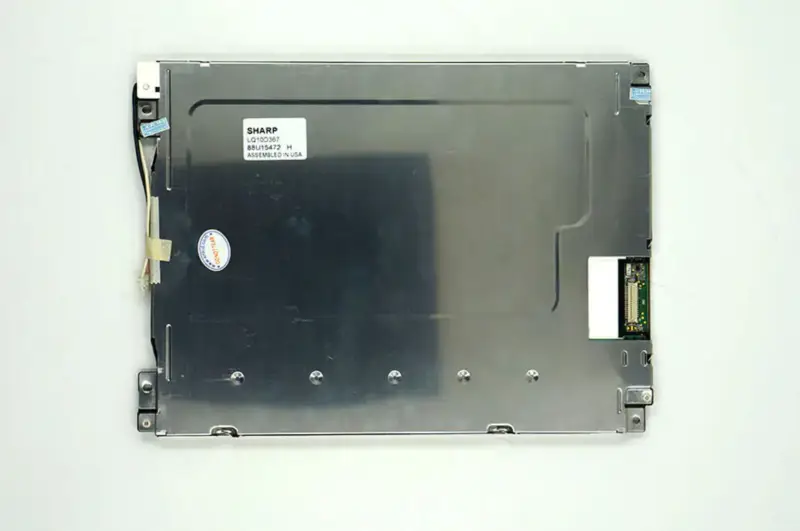

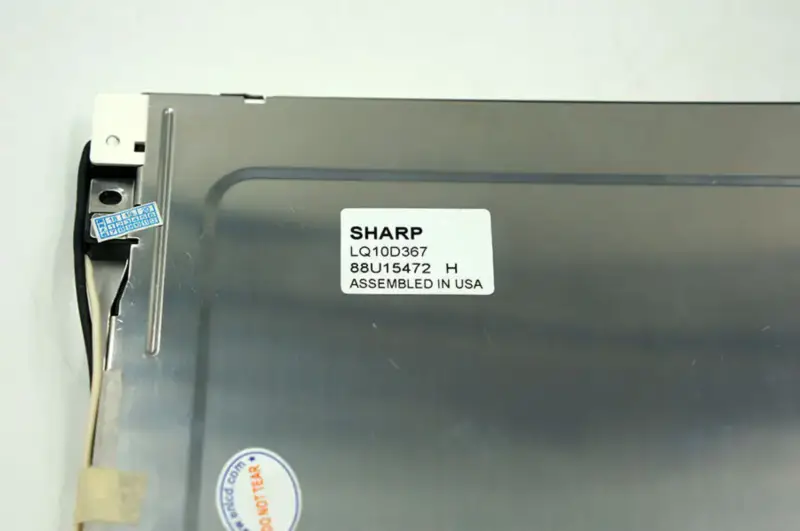

SHARP LQ10D367 LCD panel

Panel Brand：SHARP
Panel Model： LQ10D367 2 Compatible
Panel Size：10.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：640(RGB)×480 , VGA
Pixel Format：RGB Vertical Stripe
Display Area：211.2(W)×158.4(H) mm
Bezel Opening：216.2(W)×163.4(H) mm
Outline Size：246.5(W)×179.4(H)×11(D) mm
Surface：Antiglare (Haze 28%), Hard coating (3H), Antireflection
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：100:1 (Min.) (TM)
Viewing Angle：70/70/40/70 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：20/40 (Typ.)(Tr/Td)
Display Colors：262K
Lamp Type：1 pcsCCFL, 25K hours, Without Driver
Frequency： –
Touch Screen：Without
Panel Weight： 625g (Typ.)
Application： Industrial Application,
Signal Interface： Parallel RGB (1 ch, 6-bit), 31 pins , Connector
Input Voltage：5.0V (Typ.)(VCC)
Environment：Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 70 °C
