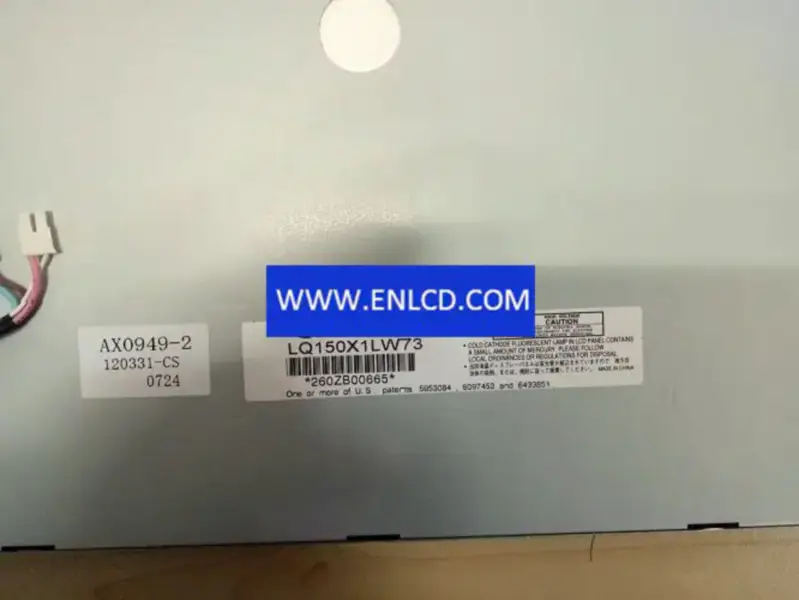

SHARP LQ150X1LW73 LCD panel

Panel Brand：SHARP
Panel Model：LQ150X1LW73
Panel Size：15.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×768 , XGA
Pixel Format：RGB Vertical Stripe
Display Area：304.1(W)×228.1(H) mm
Bezel Opening：307.2(W)×231.1(H) mm
Outline Size：331.6(W)×254.76(H)×13(D) mm
Surface：Antiglare (Haze 42%), Hard coating (3H), Antireflection
Brightness：350 cd/m2 (Typ.)
Contrast Ratio：600:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：ASV, Normally Black, Transmissive
Best View on：Symmetry
Response Time：35 (Typ.)(Tr+Td)
Display Colors：16.2M
Lamp Type：4 pcsCCFL, 50K hours
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 1.45Kgs (Max.)
Application： Industrial Application,
Signal Interface： LVDS (1 ch, 8-bit), 20 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 65 °C：：
