Panel Brand：SHARP
Panel Size：3.0 inch
Resolution：240(RGB)×400 , WQVGA
Display Area：38.88(W)×64.8(H) mm
Outline Size：43.08(W)×75.4(H) mm
Brightness：500 cd/m2 (Typ.)
Viewing Angle：80/80/80/80 (Typ.)(CR≥5)
Best View on：Symmetry
Display Colors：262K70%(CIE1931)
Frequency：-
Weight：11.0g

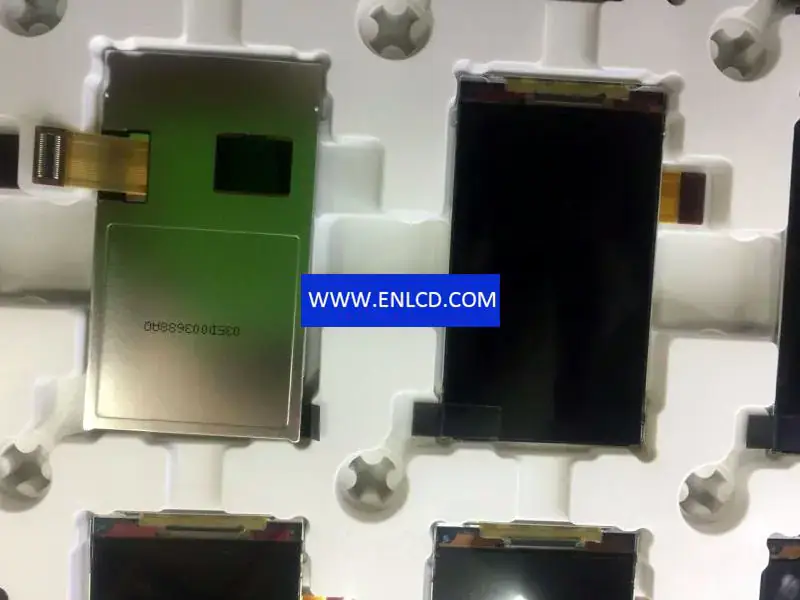

Panel Model：LS030B3UW01
Panel Type：CG-Silicon , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：39.88(W)×65.8(H) mm
Surface：-
Contrast Ratio：2000:1 (Typ.) (TM)
Display Mode： Normally Black, Transmissive
Response Time：11/24 (Typ.)(Tr/Td)
Lamp Type： 1S6P WLED, Without Driver
Touch Screen：Without
Application： Mobile Phone,
Signal Interface： CPU, 40 pins , Connector
Input Voltage： 2.8V (Typ.)(VCC)
Environment： Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
