Manufacturer：SHARP
Screen Size： 3.7 inch
Pixel Number： 480(RGB)×640(VGA)
Active Area(mm)：56.16 × 74.88 (H×V)
Bezel Area(mm)：59.8 × 78.5 (H×V)
Luminance：165 (Typ.)(cd/m2)
Viewing Angle：80/80/80/80 (Typ.)(CR≥5)
Good View at：Symmetry
Color Depth：262K 35% (CIE1931)
Mass： 48.0g (Typ.)
Refresh Rate：-

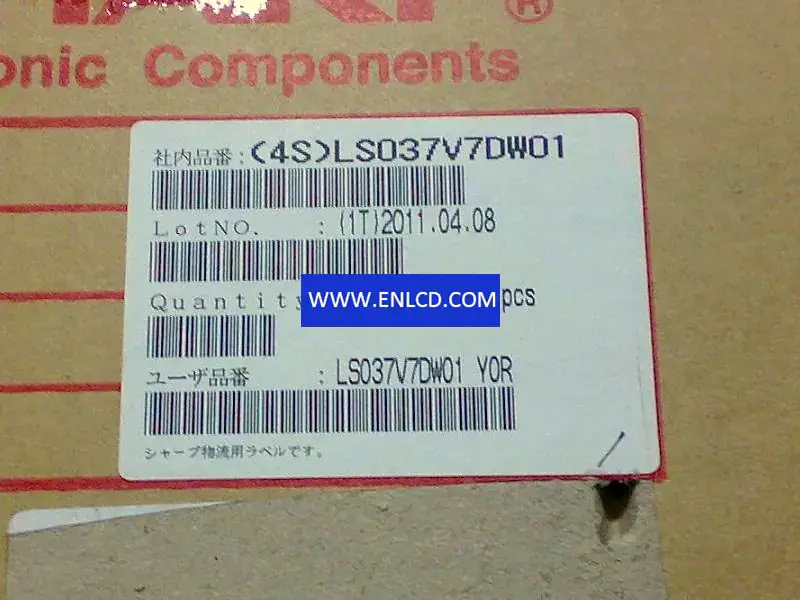

Model Name：LS037V7DW01
Screen Type：LCM ,CG-Silicon
Arrangement：RGB Vertical Stripe
Outline(mm)： 65 × 89.2 × 6.4 (H×V×D)
Treatment：Hard coating (3H)
Contrast Ratio： 200 : 1 (Typ.) (TM) 2:1 (Typ.) (RF)
Work Mode： Normally Black, Transflective
Response：15/20 (Typ.)(Tr/Td) ms
Backlight： WLED
Used for： Handheld & PDA,
Touchscreen：Embeded (4-wire Resistive)
Signal Type：Parallel RGB (1 ch, 6-bit), FPC, 51 pins
Voltage Supply： 3.3V (Typ.)(VSHD)
Max. Ratings： Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
