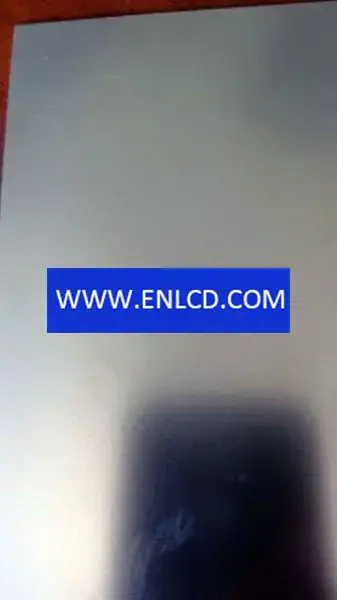

SHARP LS050T1SX01 LCD panel

Manufacturer：SHARP
Screen Size： 5.0 inch
Pixel Number： 1080(RGB)×1920(FHD)
Active Area(mm)：61.884 × 110.016 (H×V)
Bezel Area(mm)：-
Luminance：450 (Typ.)(cd/m2)
Viewing Angle：-
Good View at：Symmetry
Color Depth：16.7M 72% (CIE1931)
Mass： 21.0g (Typ.)
Refresh Rate：60Hz
Model Name：LS050T1SX01
Screen Type：LCM ,CG-Silicon
Arrangement：RGB Vertical Stripe
Outline(mm)： 64.3 × 118.2 × 1.5 (H×V×D)
Treatment：Hard coating (3H)
Contrast Ratio： 1000 : 1 (Typ.) (TM)
Work Mode： New Mode2, Normally Black, Transmissive
Response：35 (Max.)(Tr+Td) ms
Backlight：6S2P WLED, No Driver
Used for： Mobile Phone,
Touchscreen：Without
Signal Type：MIPI (4 data lanes), FPC, 31 pins
Voltage Supply： 1.8/5.0/-5.0V (Typ.)(IOVDD/AVDD+/AVDD-)
Max. Ratings： Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
