Panel Brand：ChiHsin

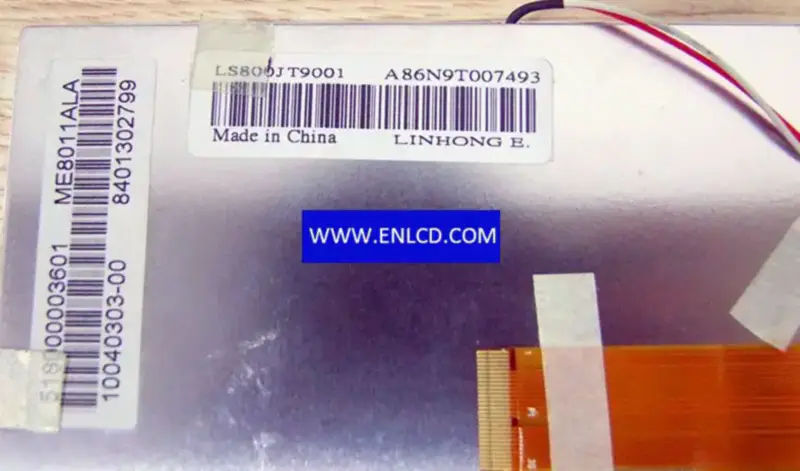

Panel Model： LS800JT9001
Panel Size：8.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×600 , SVGA
Pixel Format：RGB Vertical Stripe
Display Area：162(W)×121.5(H) mm
Bezel Opening：164.6(W)×124.1(H) mm
Outline Size：183(W)×141(H) mm
Surface：Antiglare (Haze 25%)
Brightness：250 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：70/70/60/70 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o'clock
Response Time：15/35 (Typ.)(Tr/Td)
Display Colors：262K
Lamp Type：3S9PWLED, 10K hours, Without Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 245g (Typ.)
Application： Automotive Display, Digital Photo Frame, Portable DVD Player, Gaming, Industrial Application,
Signal Interface： Parallel RGB (1 ch, 6-bit), 60 pins , FPC
Input Voltage：3.3/8.4/16/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment：Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
