Panel Brand：Toshiba Matsushita
Panel Size：10.4 inch
Resolution：800(RGB)×600 , SVGA
Display Area：211.2(W)×158.4(H) mm
Outline Size：242(W)×178.5(H) mm
Brightness：400 cd/m2 (Typ.)
Viewing Angle：60/60/50/50 (Typ.)(CR≥10)
Best View on：-
Display Colors：262K
Frequency：-
Weight：580g (Typ.)

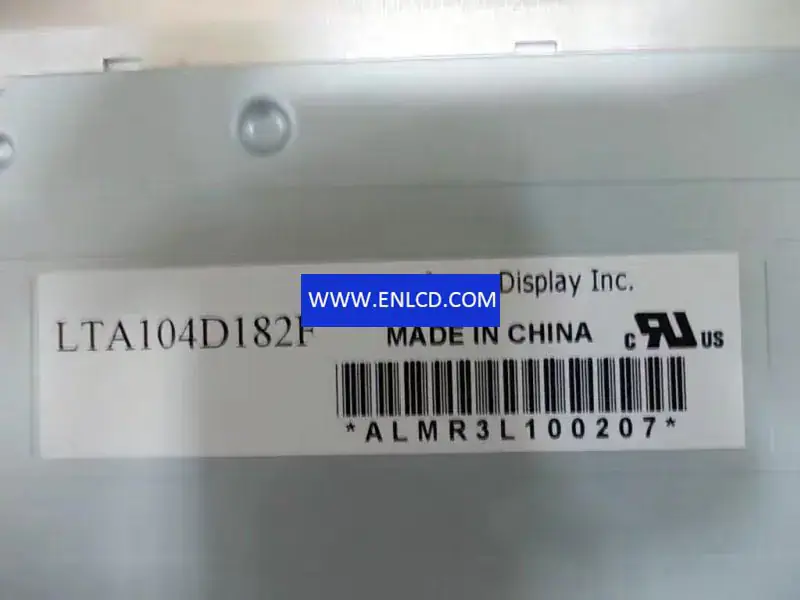

Panel Model：LTA104D182F
Panel Type：LTPS TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：214.6(W)×162.4(H) mm
Surface：-
Contrast Ratio：450:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：8/17 (Typ.)(Tr/Td)
Lamp Type： 2 pcs CCFL , 50K hours , Without Driver
Touch Screen：Without
Application： Industrial Application,
Signal Interface： LVDS (1 ch, 6-bit), 20 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
