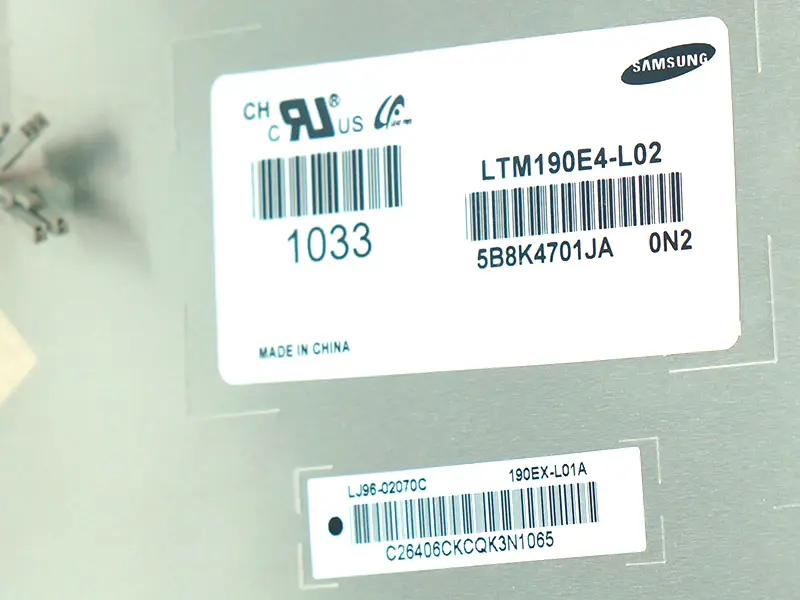

Samsung LTM190E4-L02 LCD panel Desktop Monitor

Panel Brand：SAMSUNG
Panel Model：LTM190E4-L021 Compatible
Panel Size：19.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1280(RGB)×1024 , SXGA
Pixel Format：RGB Vertical Stripe
Display Area：376.32(W)×301.056(H) mm
Bezel Opening：380.2(W)×305.0(H) mm
Outline Size：396(W)×324(H)×17(D) mm
Surface：Antiglare (Haze 44%), Hard coating (3H)
Brightness：250 cd/m2 (Typ.)
Contrast Ratio：1500:1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Display Mode：PVA, Normally Black, Transmissive
Best View on：Symmetry
Response Time：13/7 (Typ.)(Tr/Td)
Display Colors：16.7M 72%(CIE1931)
Lamp Type：4 pcsCCFL, 50K hours, Without Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 2.55Kgs (Max.)
Application： Desktop Monitor,
Signal Interface： LVDS (2 ch, 8-bit), 30 pins , Connector
Input Voltage：5.0V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C：：
