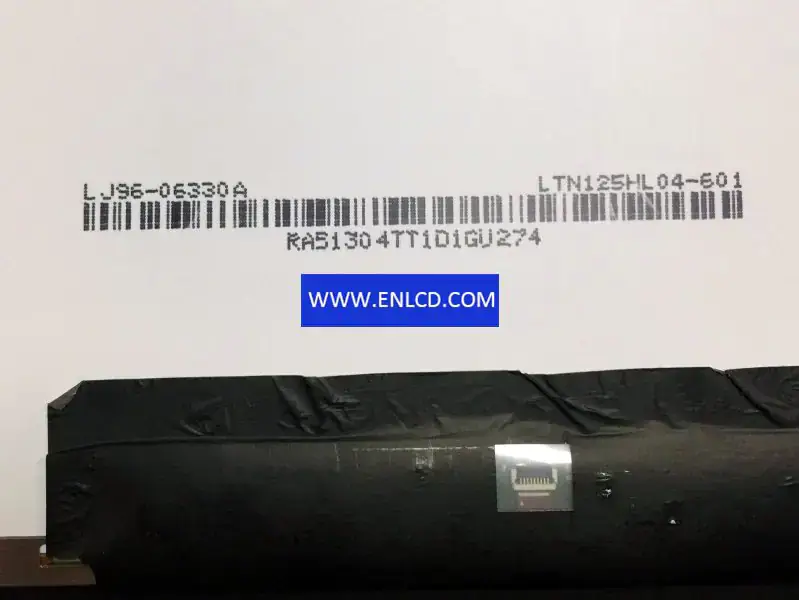

Samsung LTN125HL04-601 LCD panel

Panel Brand：SAMSUNG
Panel Model：LTN125HL04-601
Panel Size：12.5 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1920(RGB)×1080 , FHD
Pixel Format：RGB Vertical Stripe
Display Area：276.48(W)×155.52(H) mm
Bezel Opening：-
Outline Size：288(W)×168.64(H)×4.8(D) mm
Surface：Hard coating (3H)
Brightness：400 cd/m2 (Typ.)
Contrast Ratio：700:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：PLS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：30 (Typ.)(Tr+Td)
Display Colors：262K 50%(CIE1931)
Lamp Type：11S4PWLED, 15K hours, Without Driver
Frequency： 60Hz
Touch Screen：Without
Shape Style： Slim (PCBA Flat, Depth ≤3.2mm)
Application： Laptop,
Signal Interface： eDP (2 Lanes), 33 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
