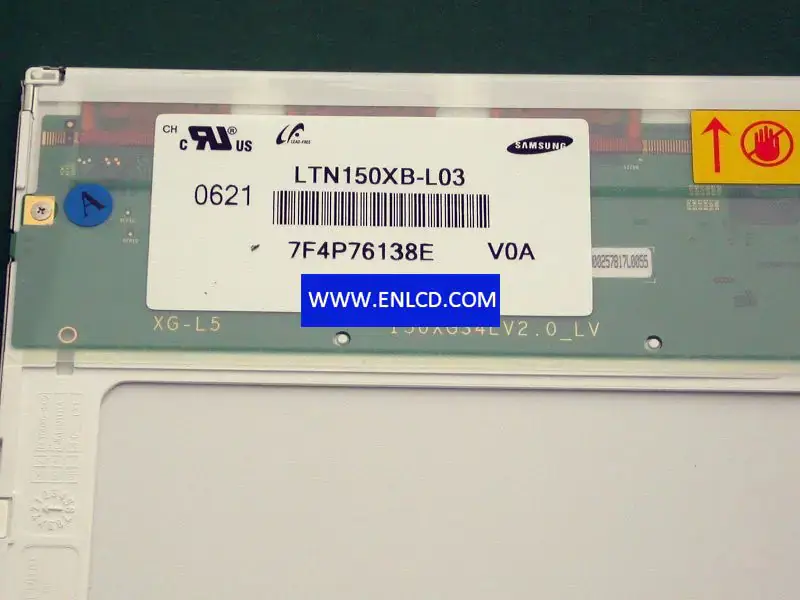

Samsung LTN150XB-L03 LCD panel Touchscreen replacement

Manufacturer：SAMSUNG
Model Name：LTN150XB-L03 (SEC0000)
Screen Size：15.0 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1024(RGB)×768 (XGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：304.128 × 228.096 (H×V)
Outline(mm)： 317.3 × 242× 6.5 (H×V×D)
Bezel Area(mm)：307.55 × 231.4 (H×V)
Treatment：Antiglare (Haze 25%), Hard coating (3H)
Luminance：160 cd/m2 (Typ.)
Contrast Ratio：200 : 1 (Min.) (TM)
Viewing Angle：45/45/25/45 (Typ.)(CR≥10)
Response：10/30 (Typ.)(Tr/Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K
Backlight：1 pcsCCFL, 10K hours, No Driver
Outline Shape： Wedge (PCBA Bent, Depth ≥5.2mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (1 ch, 6-bit), Connector , 30 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
