Manufacturer：ChiHsin

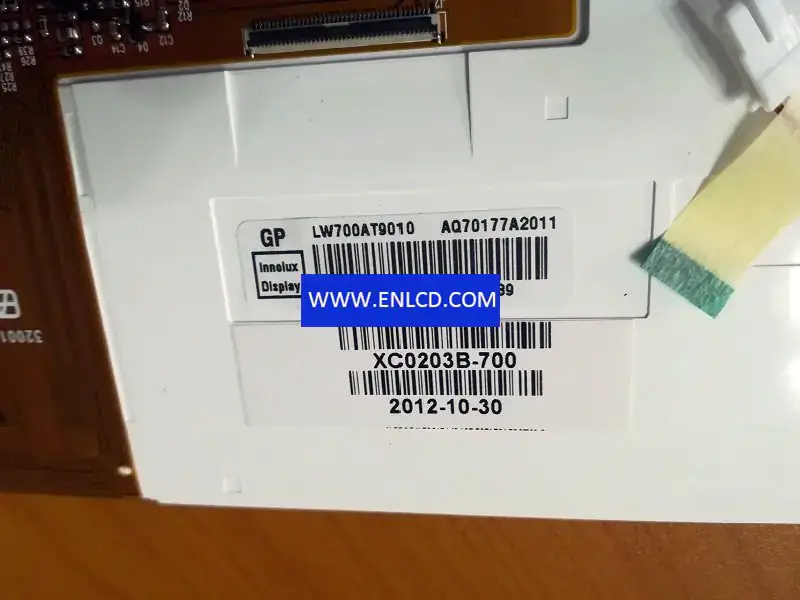

Model Name：LW700AT9010
Screen Size：7.0 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：800(RGB)×480 (WVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 152.4 × 91.44 (H×V)
Outline(mm)：165 × 104.4× 5.7 (H×V×D)
Bezel Area(mm)： 155.3 × 94.3 (H×V)
Treatment： Antiglare
Luminance：250 cd/m2 (Typ.)
Contrast Ratio：400 : 1 (Typ.) (TM)
Viewing Angle： 70/70/60/60 (Typ.)(CR≥10)
Response： 10/15 (Typ.)(Tr/Td) ms
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 72%(CIE1931)
Backlight：3S8PWLED, 20K hours, No Driver
Mass： 123g
Used for： MP4 PMP, VOIP Phone, Digital Photo Frame, Portable DVD Player,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：TTL (1 ch, 6-bit), FPC, 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
