Panel Brand：Chimei Innolux
Panel Size：7.0 inch
Resolution：800(RGB)×480 , WVGA
Display Area：152.4(W)×91.44(H) mm
Outline Size：165(W)×104.44(H)×5.7(D) mm
Brightness：350 cd/m2 (Typ.)
Viewing Angle：70/70/60/70 (Typ.)(CR≥10)
Best View on：6 o'clock
Display Colors：262K45%(CIE1931)
Frequency： 60Hz
Weight：125g (Typ.)

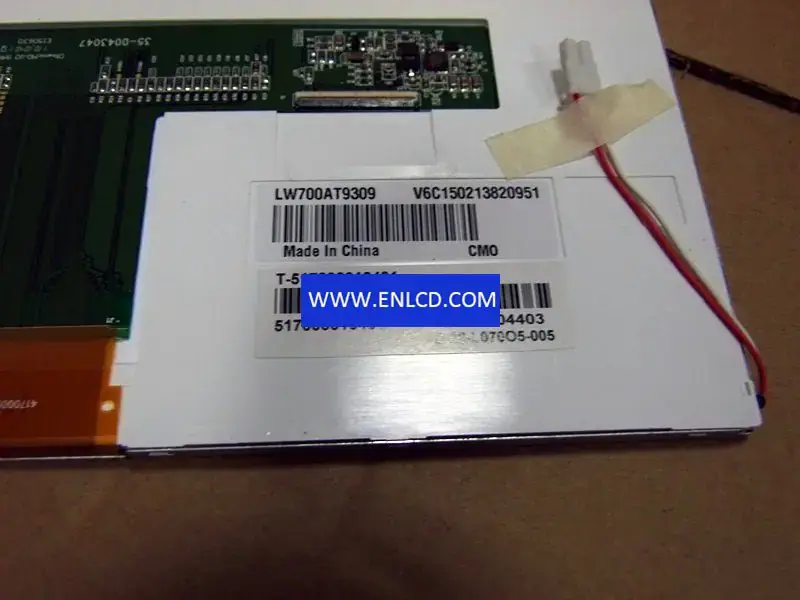

Panel Model：LW700AT9309 1 Compatible
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：155.30(W)×94.30(H) mm
Surface：Antiglare
Contrast Ratio：400:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：5/11 (Typ.)(Tr/Td)
Lamp Type： 3S8P WLED , 20K hours , Without Driver
Touch Screen：Without
Application： Portable DVD Player, Digital Photo Frame,
Signal Interface： TTL (1 ch, 6-bit), 40 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
