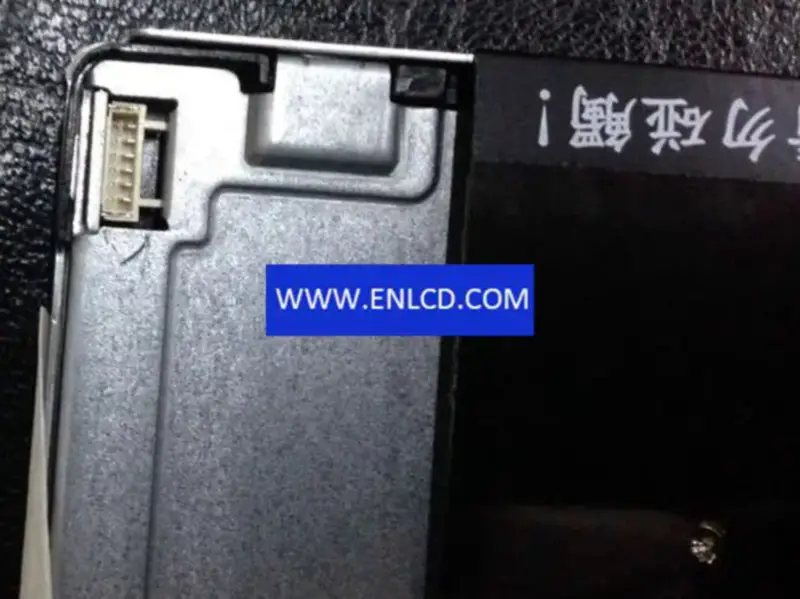

Innolux M236HJJ-L30 LCD panel for Desktop Monitor

Panel Brand：Innolux
Panel Size：23.6 inch
Resolution：1920(RGB)×1080 , FHD
Display Area：521.28(W)×293.22(H) mm
Outline Size：544.8(W)×320.5(H)×11.5(D) mm
Brightness：250 cd/m2 (Typ.)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Best View on：Symmetry
Display Colors：16.7M72%(CIE1931)
Frequency： 60Hz
Weight：2.31±0.11Kgs
Panel Model：M236HJJ-L30
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：525.22(W)×297.22(H) mm
Surface：Antiglare (Haze 3%), Hard coating (3H)
Contrast Ratio：3000:1 (Typ.) (TM)
Display Mode： Super MVA, Normally Black, Transmissive
Response Time：10 (Typ.)(G to G)
Lamp Type： 4 strings WLED , 30K hours , Without Driver
Touch Screen：Without
Application： Desktop Monitor,
Signal Interface： LVDS (2 ch, 8-bit), 30 pins , Connector
Input Voltage： 5.0V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
