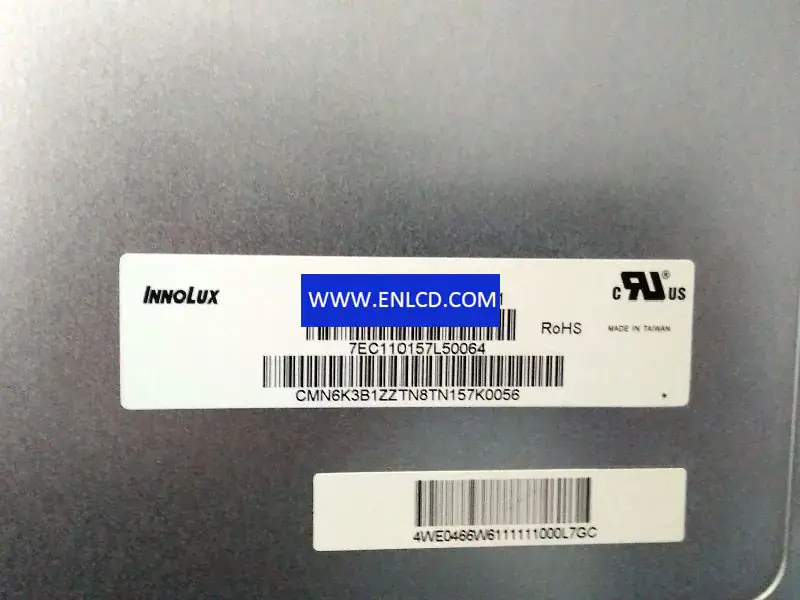

Innolux M236HJK-L3B LCD panel Desktop Monitor

Panel Brand：Innolux
Panel Model：M236HJK-L3B
Panel Size：23.6 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1920(RGB)×1080 , FHD
Pixel Format：RGB Vertical Stripe
Display Area：521.28(W)×293.22(H) mm
Bezel Opening：-
Outline Size：539.84(W)×317.32(H)×15.9(D) mm
Surface：Hard coating (6H)
Brightness：250 cd/m2 (Typ.)
Contrast Ratio：4000:1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Display Mode：Super MVA, Normally Black, Transmissive
Best View on：Symmetry
Response Time：8.5 (Typ.)(G to G)
Display Colors：16.7M 72%(CIE1931)
Lamp Type：WLED, 30K hours, Without Driver
Frequency：60Hz
Touch Screen：Embeded (Projected Capacitive Touch)
Panel Weight： 2.73/2.78Kgs (Typ./Max.)
Application： Desktop Monitor,
Signal Interface： LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage：5.0V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
