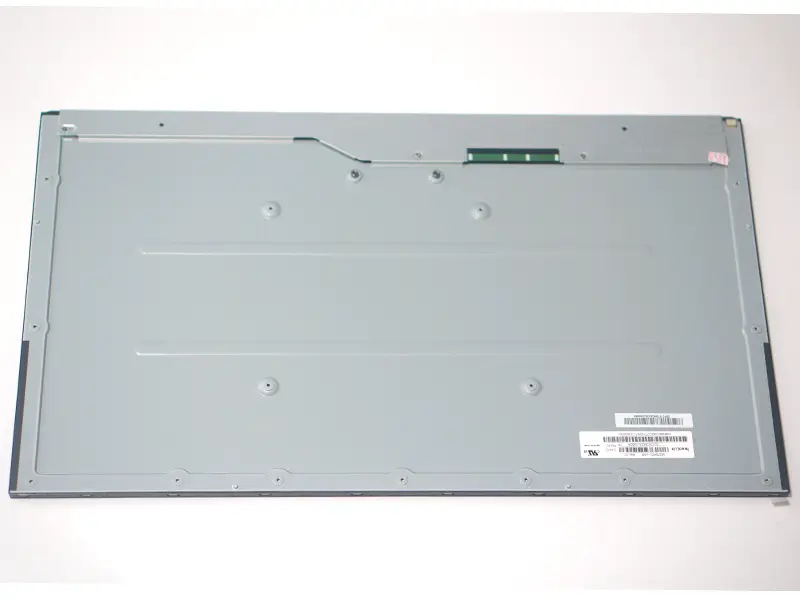

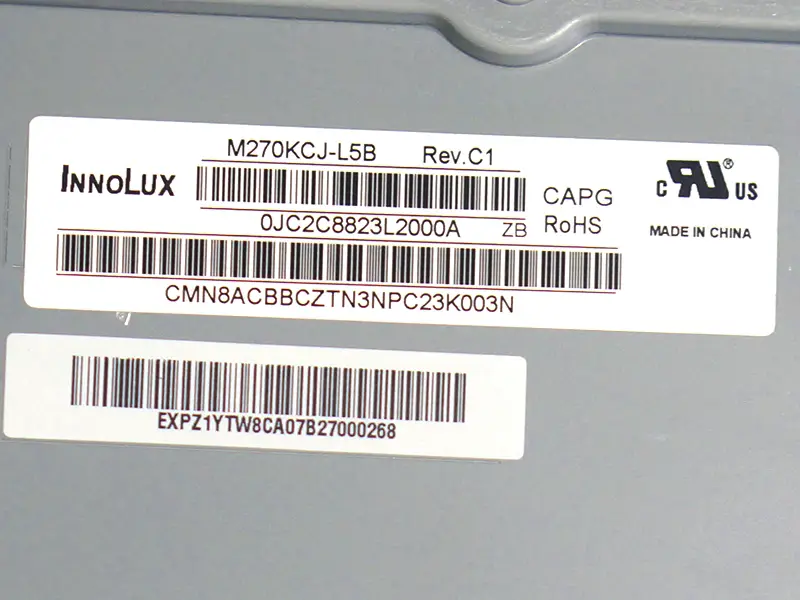

Innolux M270KCJ-L5B Rev.C1 C2 LCD panel

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
Brand: Innolux
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Quantity:




Brand:Innolux
Model:M270KCJ-L5B Rev.C1 C2
Diagonal Size:27.0 inch
Type:a-Si TFT-LCD, LCM
Pixel Format:2560(RGB)×1440[Quad-HD]
Configuration:RGB Vertical Stripe
Active Area:596.736(H)×335.664(V) mm
Outline Dim.:608.8(H)×355.13(V) mm
Bezel Area:-
Treatment:Antiglare (Haze 25%), Hard coating (3H)
Luminance:350 cd/m2 (Typ.)
Contrast Ratio:1000:1 (Typ.) (TM)
View Direction:Symmetry
Response Time:8/7 (Typ.)(Tr/Td)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
Operating Mode:AAS, Normally Black, Transmissive
Support Color:16.7M 95%(DCI-P3)
Light Source:WLED[4 strings], 30K hours, W/O Driver
Weight: 2.58/2.87/3.01g (Min./Typ./Max.)
Designed For: Desktop Monitor,
Frame Rate:60Hz
Touch Panel:Without
Interface Type: 92 pinsLVDS (4 ch, 8-bit), Connector
Power Supply:10.0V (Typ.)
Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Package size: 74*47*10cm
Packing weight: 4.4KG
DHL Gross weight: 7KG
