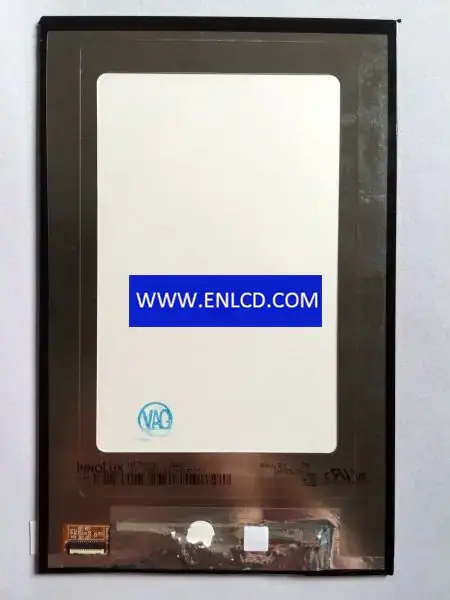

Innolux N070ICE-GB2 LCD panel

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
Brand: Innolux
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Quantity:




Panel Brand:Innolux
Panel Model:N070ICE-GB2
Panel Size:7.0 inch
Panel Type:a-Si TFT-LCD, LCM
Resolution:800(RGB)×1280 , WXGA
Pixel Format:RGB Vertical Stripe
Display Area:94.2(W)×150.72(H) mm
Bezel Opening:97.35(W)×153.82(H) mm
Outline Size:103.5(W)×162.15(H)×3.6(D) mm
Surface:Glare (Haze 0%), Hard coating (3H)
Brightness:450 cd/m2 (Typ.)
Contrast Ratio:1000:1 (Typ.) (TM)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
Display Mode:IPS, Normally Black, Transmissive
Best View on:Symmetry
Response Time:14/11 (Typ.)(Tr/Td)
Display Colors:16.7M
Lamp Type:6S3PWLED, 15K hours, Without Driver
Frequency:60Hz
Touch Screen:Without
Panel Weight: 60.0g (Max.)
Application: Pad & Tablet,
Signal Interface: MIPI (4 data lanes), 31 pins, Connector
Input Voltage:1.8/3.3V (Typ.)(VDDI/VCI)
Environment:Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C

We use the following logistics services to deliver your order:

Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.

DHL, UPS, FedEx: Delivery takes 2-4 working days.

Product condition: Brand New We can provide customized testing video upon request.
