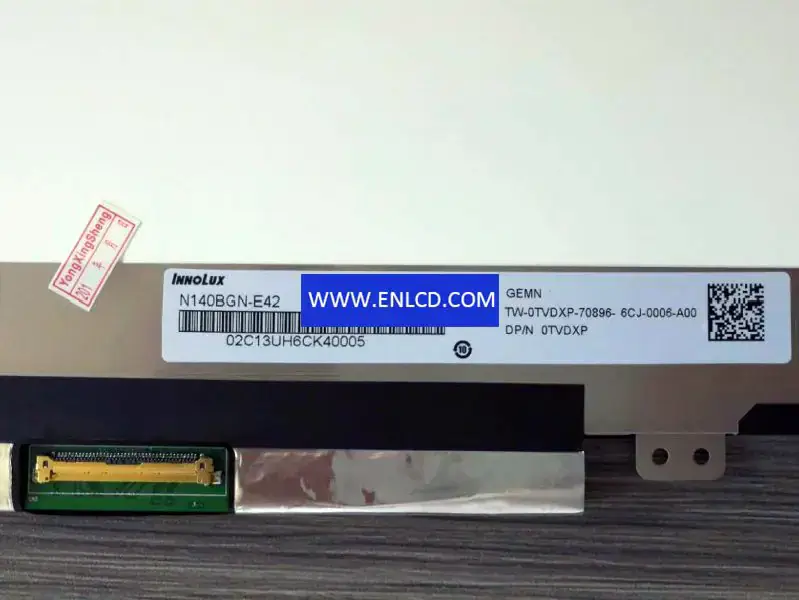

Innolux N140BGN-E42 LCD panel for Laptop

Panel Brand：Innolux
Panel Size：14.0 inch
Resolution：1366(RGB)×768 , WXGA
Display Area：309.399(W)×173.952(H) mm
Outline Size：320.4(W)×205.1(H)×3.2(D) mm
Brightness：220 cd/m2 (Typ.)
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Best View on：6 o’clock
Display Colors：262K45%(CIE1931)
Frequency： 60Hz
Shape Style：Slim (PCBA Flat, Depth ≤3.2mm)
Panel Model：N140BGN-E42 (CMN14B5)
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：-
Surface：Glare (Haze 0%), Hard coating
Contrast Ratio：600:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：3/7 (Typ.)(Tr/Td)
Lamp Type：WLED , 15K hours , With LED Driver
Touch Screen：Embeded (Projected Capacitive Touch, On-Cell)
Application： Laptop,
Signal Interface： eDP (1 Lane), 40 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
