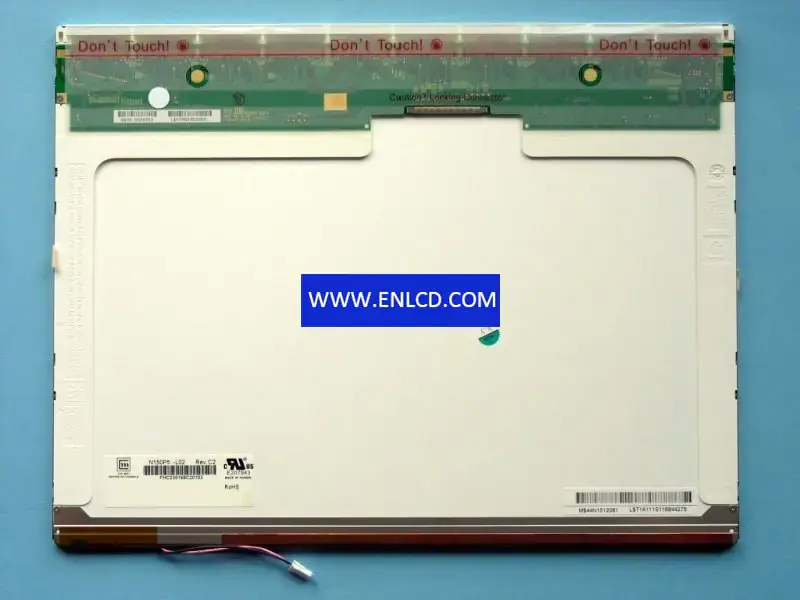

Innolux N150P5-L02 LCD panel replacement for Laptop

Panel Brand：CMO
Panel Model：N150P5-L02
Panel Size：15.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1400(RGB)×1050 , SXGA+
Pixel Format：RGB Vertical Stripe
Display Area：304.5(W)×228.375(H) mm
Bezel Opening：308.1(W)×232.0(H) mm
Outline Size：317.3(W)×242(H)×6(D) mm
Surface：Antiglare (Haze 25%), Hard coating (3H)
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：5/11 (Typ.)(Tr/Td)
Display Colors：262K
Lamp Type：1 pcsCCFL, 10K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (2 ch, 6-bit), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
