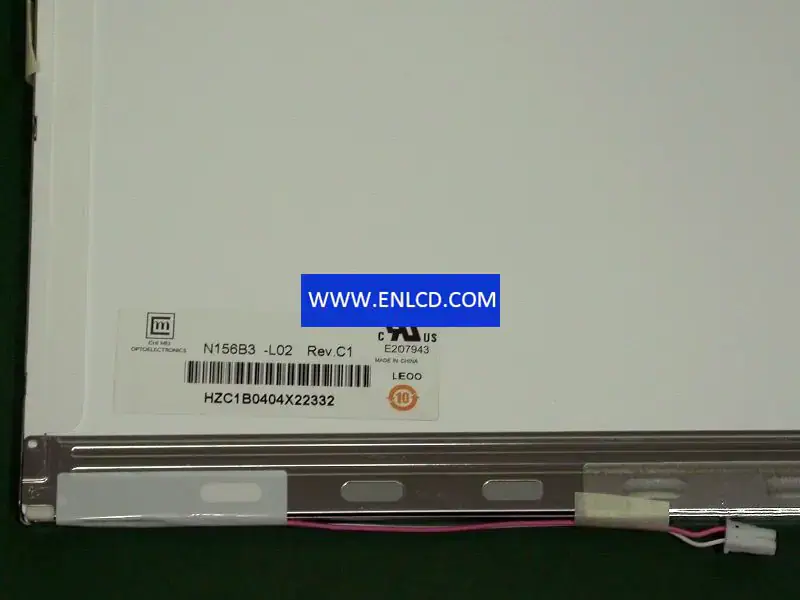

Innolux N156B3-L02 LCD panel

Panel Brand：CMO
Panel Model：N156B3-L02 (CMO1558) 11 Compatible
Panel Size：15.6 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：344.232(W)×193.536(H) mm
Bezel Opening：347.73(W)×197.04(H) mm
Outline Size：359.3(W)×209.5(H)×6.2(D) mm
Surface：Glare (Haze 0%), Hard coating (3H)
Brightness：220 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：3/5 (Typ.)(Tr/Td)
Display Colors：262K 60%(CIE1931)
Lamp Type：1 pcsCCFL, 15K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
