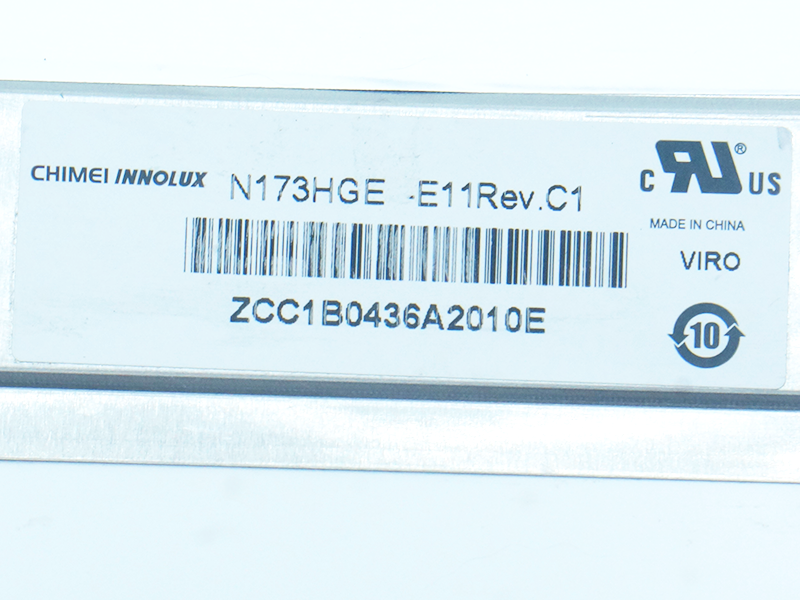

Innolux N173HGE-E11 LCD panel for Laptop

Panel Brand：Innolux
Panel Size：17.3 inch
Resolution：1920(RGB)×1080 , FHD
Display Area：381.888(W)×214.812(H) mm
Outline Size：398.1(W)×232.8(H)×5.8(D) mm
Brightness：300 cd/m2 (Typ.)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Best View on：6 o'clock
Display Colors：262K72%(CIE1931)
Frequency： 60Hz
Shape Style：Wedge (PCBA Bent, Depth ≥5.2mm)
Panel Model：N173HGE-E11 (CMN1735)
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：386.18(W)×218.85(H) mm
Surface：Antiglare, Hard coating (3H)
Contrast Ratio：650:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：2/6 (Typ.)(Tr/Td)
Lamp Type： 11S6P WLED , 15K hours , With LED Driver
Touch Screen：Without
Application： Laptop,
Signal Interface： eDP (2 Lanes), 30 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
