Panel Brand：NEC
Panel Size：8.4 inch
Resolution：1024(RGB)×768 , XGA
Display Area：170.496(W)×127.872(H) mm
Outline Size：200(W)×152(H) mm
Brightness：400 cd/m2 (Typ.)
Viewing Angle：88/88/88/88 (Typ.)(CR≥10)
Best View on：Symmetry
Display Colors：262K/16.7M72%(CIE1931)
Frequency： 60Hz
Weight：465/490g (Typ./Max.)

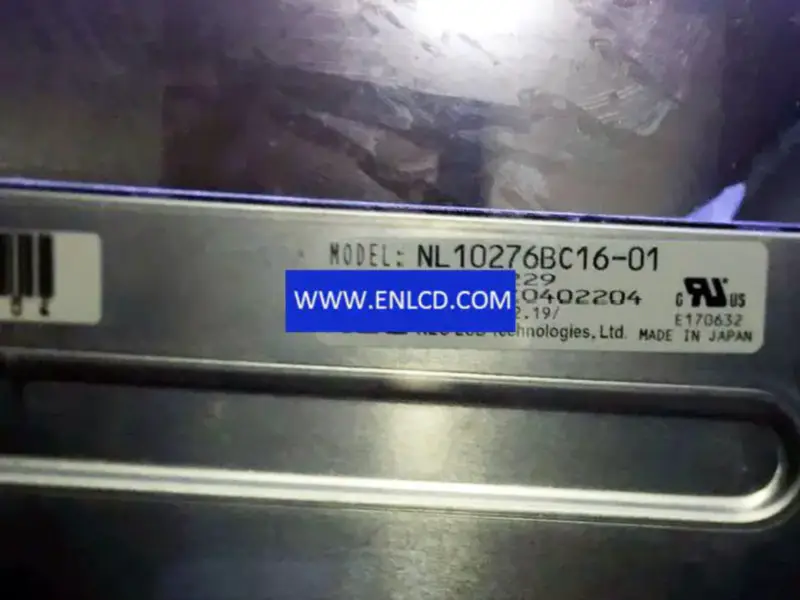

Panel Model：NL10276BC16-01
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：173.6(W)×131.1(H) mm
Surface：Antiglare, Hard coating (3H)
Contrast Ratio：400:1 (Typ.) (TM)
Display Mode： UA-SFT, Normally Black, Transmissive
Response Time：13/12 (Typ.)(Tr/Td)
Lamp Type： 4 pcs CCFL , 50K hours , Without Driver
Touch Screen：Without
Application： Industrial Application,
Signal Interface： LVDS (1 ch, 6/8-bit), 20 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 55 °C ;Storage Temp.: -20 ~ 60 °C
