Panel Brand：NLT

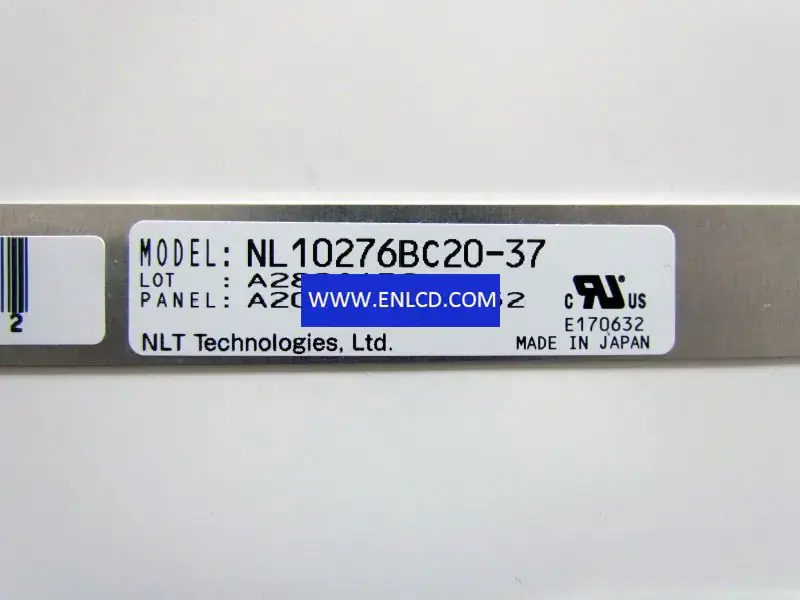

Panel Model：NL10276BC20-37
Panel Size：10.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×768 , XGA
Pixel Format：RGB Vertical Stripe
Display Area：210.4(W)×157.8(H) mm
Bezel Opening：-
Outline Size：231.2(W)×174.6(H)×5.8(D) mm
Surface：Clear
Brightness：150 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：45/45/40/20 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：-
Response Time：3/15 (Typ.)(Tr/Td)
Display Colors：262K/16.7M
Lamp Type：WLED, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 196g (Typ.)
Application： Industrial Application,
Signal Interface： LVDS (1 ch, 6/8-bit), Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
