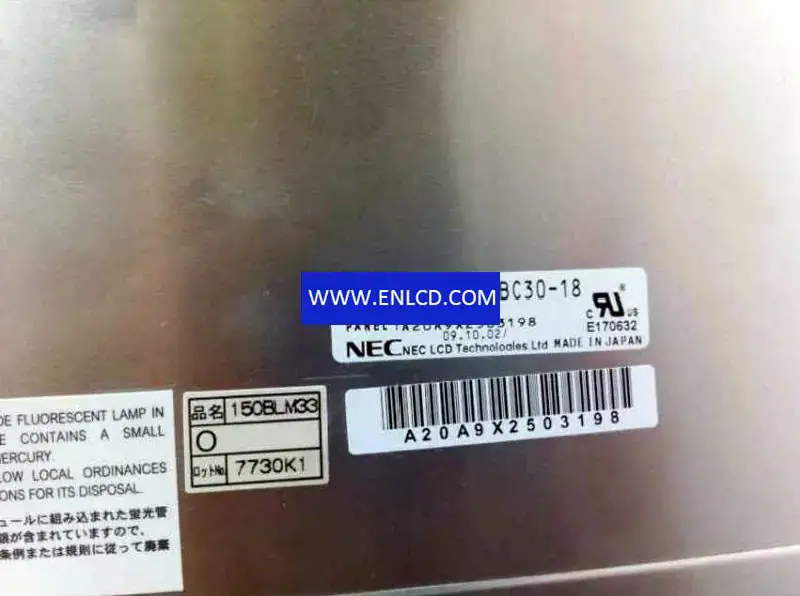

Panel Brand：NEC
Panel Model：NL10276BC30-18
Panel Size：15.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×768 , XGA
Pixel Format：RGB Vertical Stripe
Display Area：304.128(W)×228.096(H) mm
Bezel Opening：307.4(W)×231.3(H) mm
Outline Size：326.5(W)×253.5(H)×17(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：500 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：80/80/80/60 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：4/14 (Typ.)(Tr/Td)
Display Colors：16.7M 40%(CIE1931)
Lamp Type：4 pcsCCFL, Optional
Frequency：60Hz
Touch Screen：Without
Panel Weight： 1.30/1.43Kgs (Typ./Max.)
Application： Industrial Application,
Signal Interface： LVDS (1 ch, 8-bit), 20 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -10 ~ 70 °C ;Storage Temp.: -20 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
