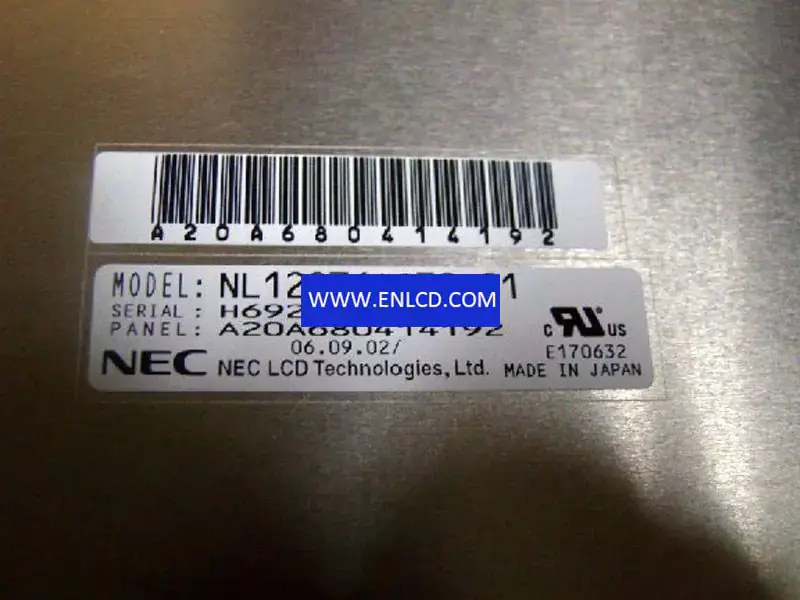

NLT NL12876AC39-01 LCD panel

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
Brand: NLT
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Condition:

Quantity:




Panel Brand:NEC
Panel Model:NL12876AC39-01
Panel Size:23.0 inch
Panel Type:a-Si TFT-LCD, LCM
Resolution:1280(RGB)×768 , WXGA
Pixel Format:RGB Vertical Stripe
Display Area:501.12(W)×300.672(H) mm
Bezel Opening:506.0(W)×305.6(H) mm
Outline Size:528(W)×326(H) mm
Surface:Hard coating (2H), Antireflection
Brightness:450 cd/m2 (Typ.)
Contrast Ratio:350:1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
Display Mode:UA-SFT, Normally Black, Transmissive
Best View on:Symmetry
Response Time:10/13 (Typ.)(Tr/Td)
Display Colors:16.7M 72%(CIE1931)
Lamp Type:12 pcsCCFL, With Inverter
Frequency:60Hz
Touch Screen:Without
Panel Weight: 2.40/2.60Kgs (Typ./Max.)
Application: Desktop Monitor, TV Sets,
Signal Interface: LVDS (1 ch, 8-bit), 20 pins, Connector
Input Voltage:5.0V (Typ.)
Environment:Operating Temp.: 0 ~ 55 °C ;Storage Temp.: -20 ~ 60 °C
