Manufacturer：NEC

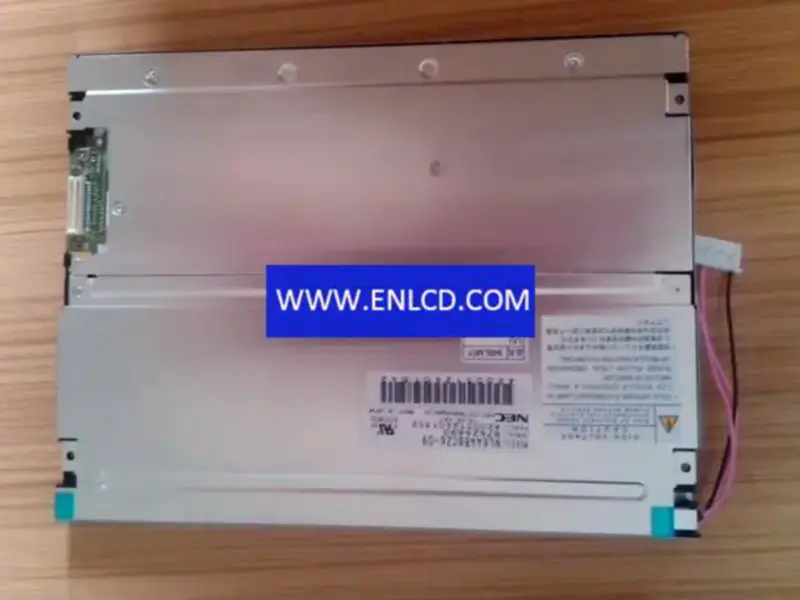

Model Name：NL6448BC26-09
Screen Size：8.4 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：640(RGB)×480 (VGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：170.88 × 128.16 (H×V)
Outline(mm)： 200 × 152 (H×V×D)
Bezel Area(mm)：174.0 × 131.4 (H×V)
Treatment：Clear, Hard coating (3H)
Luminance：450 cd/m2 (Typ.)
Contrast Ratio：600 : 1 (Typ.) (TM)
Viewing Angle：80/80/80/60 (Typ.)(CR≥10)
Response：6/19 (Typ.)(Tr/Td) ms
Good View at：6 o'clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K 40%(CIE1931)
Backlight：2 pcsCCFL, 50K hours, No Driver
Mass： 330/350g (Typ./Max.)
Used for： Industrial Application,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： CMOS (1 ch, 6-bit), Connector , 31 pins
Voltage Supply：3.3/5.0V (Typ.)
Max. Ratings：： Storage Temp.: -30 ~ 80 °COperating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
