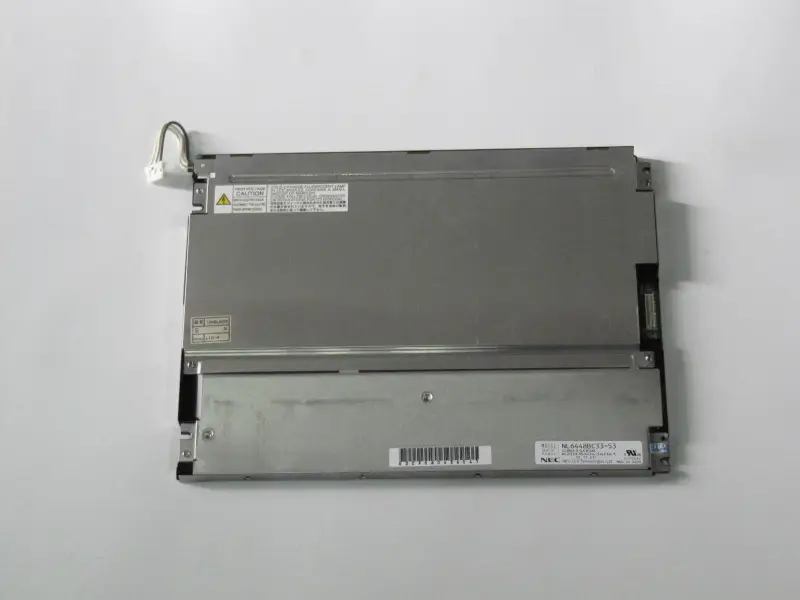

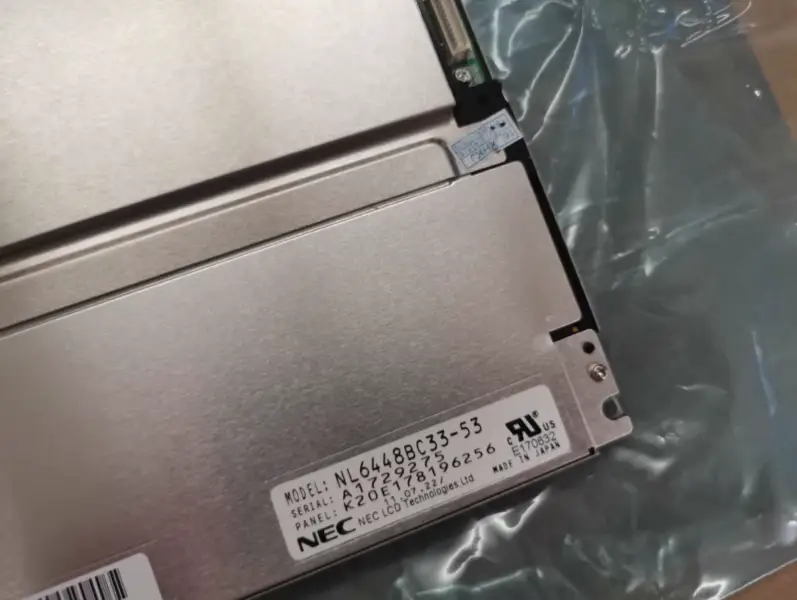

NLT NL6448BC33-53 LCD panel

Panel Brand：NEC
Panel Model：NL6448BC33-53 Compatible
Panel Size：10.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：640(RGB)×480 , VGA
Pixel Format：RGB Vertical Stripe
Display Area：211.2(W)×158.4(H) mm
Bezel Opening：215.4(W)×161.8(H) mm
Outline Size：243(W)×185.1(H)×11(D) mm
Surface：Clear, Hard coating (3H)
Brightness：380 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：SA-SFT, Normally Black, Transmissive
Best View on：Symmetry
Response Time：18/16 (Typ.)(Tr/Td)
Display Colors：262K 40%(CIE1931)
Lamp Type：2 pcsCCFL, Without Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 475/500g (Typ./Max.)
Application： Industrial Application,
Signal Interface： CMOS (1 ch, 6-bit), 31 pins , Connector
Input Voltage：3.3/5.0V (Typ.)(VCC)
Environment： Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s2)：：
