Panel Brand：NEC
Panel Size：10.4 inch
Resolution：640(RGB)×480 , VGA
Display Area：211.2(W)×158.4(H) mm
Outline Size：243(W)×185.1(H)×11(D) mm
Brightness：220 cd/m2 (Typ.)
Viewing Angle：45/45/30/20 (Typ.)(CR≥10)
Best View on：12 o'clock
Display Colors：262K40%(CIE1931)
Frequency： 60Hz
Weight：465/490g (Typ./Max.)

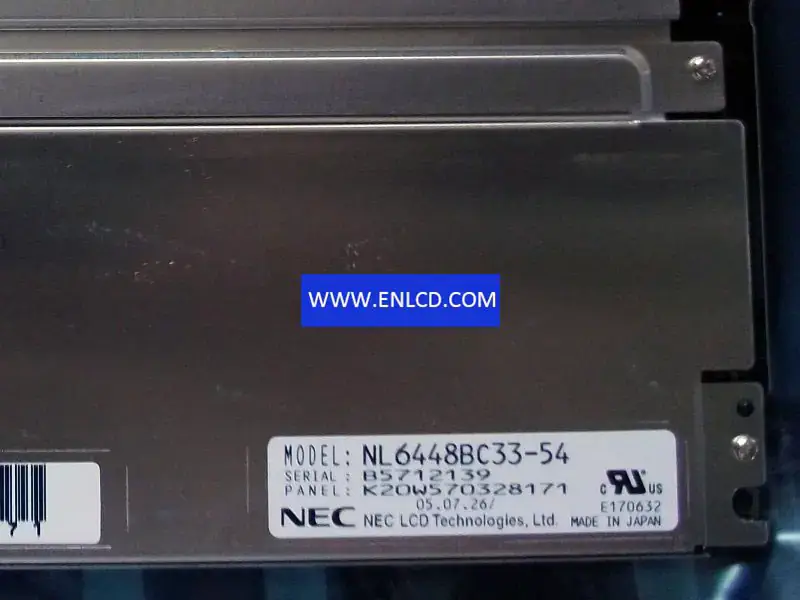

Panel Model：NL6448BC33-54
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：215.4(W)×161.8(H) mm
Surface：Clear, Hard coating (3H)
Contrast Ratio：350:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：15/23 (Typ.)(Tr/Td)
Lamp Type： 2 pcs CCFL, Without Driver
Touch Screen：Without
Application： Industrial Application,
Signal Interface： CMOS (1 ch, 6-bit), 31 pins , Connector
Input Voltage： 3.3/5.0V (Typ.)(VCC)
Environment： Operating Temp.: -10 ~ 70 °C ;Storage Temp.: -20 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s2)
