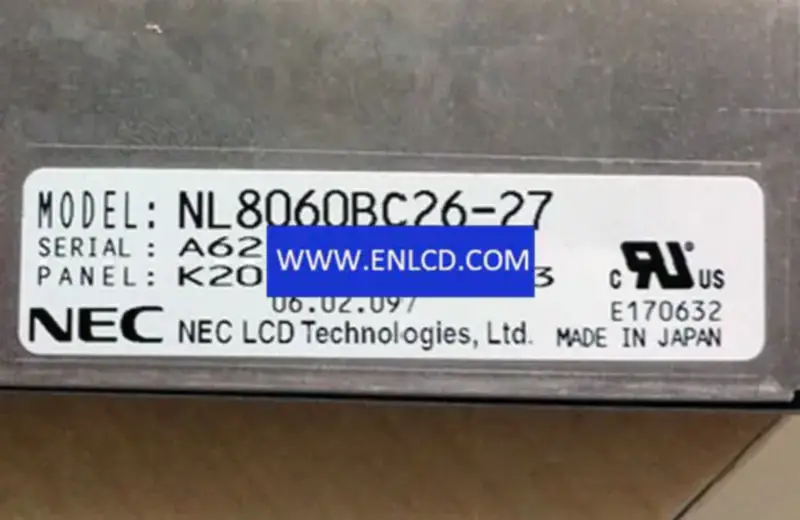

Manufacturer：NEC
Model Name：NL8060BC26-27
Screen Size：10.4 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：800(RGB)×600 (SVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 211.2 × 158.4 (H×V)
Outline(mm)：243 × 185.1× 11 (H×V×D)
Bezel Area(mm)： 215.4 × 161.8 (H×V)
Treatment： Clear, Hard coating (3H)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：700 : 1 (Typ.) (TM)
Viewing Angle： 88/88/88/88 (Typ.)(CR≥10)
Response： 25/25 (Typ.)(Tr/Td) ms
Good View at： Symmetry
Work Mode： SA-SFT, Normally Black, Transmissive
Color Depth：262K 40%(CIE1931)
Backlight：2 pcsCCFL, 50K hours, No Driver
Mass： 475/500g (Typ./Max.)
Used for： Industrial Application,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： CMOS (1 ch, 6-bit), Connector , 41 pins
Voltage Supply：3.3/5.0V (Typ.)(VCC)
Max. Ratings： Storage Temp.: -20 ~ 80 °COperating Temp.: -10 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
