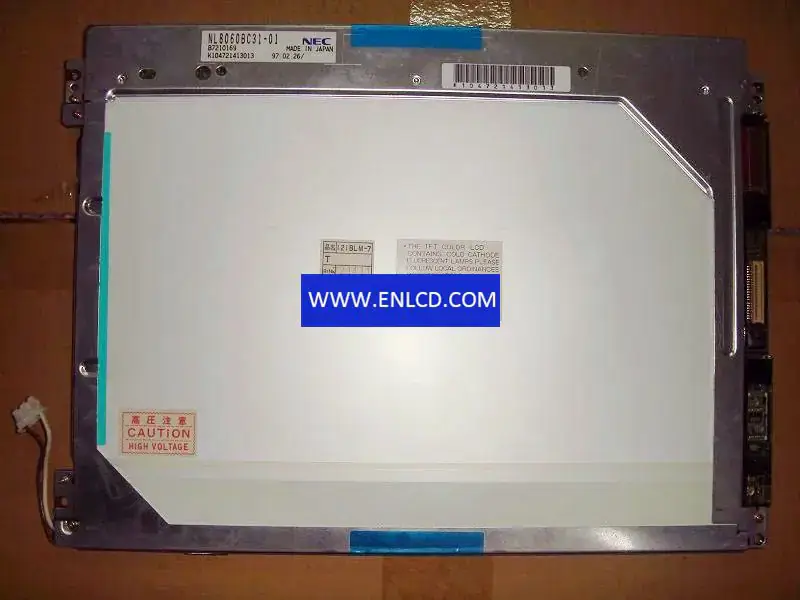

Manufacturer：NEC
Model Name：NL8060BC31-01
Screen Size：12.1 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：800(RGB)×600 (SVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 244.8 × 183.6 (H×V)
Outline(mm)：277.5 × 202.5× 8 (H×V×D)
Bezel Area(mm)： 249.0 × 187.7 (H×V)
Treatment： Antireflection
Luminance：70 cd/m2 (Typ.)
Contrast Ratio：150 : 1 (Typ.) (TM)
Viewing Angle： 50/50/20/45 (Typ.)(CR≥10)
Response： 40 (Max.)(Tr) ms
Good View at： 6 o'clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 42%(CIE1931)
Backlight：1 pcsCCFL, No Driver
Outline Shape： –
Used for： Industrial Application, Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：CMOS (1 ch, 6-bit), Connector, 41 pins
Voltage Supply：3.3/5.0V (Typ.)(VCC)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
