Brand：PVI

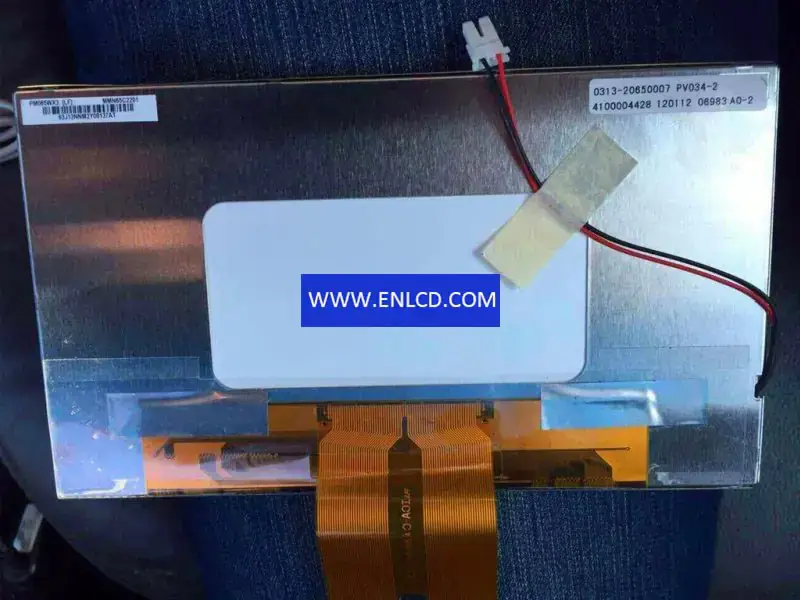

Model：PM065WX3
Diagonal Size：6.5 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：143.4(H)×79.2(V) mm
Outline Dim.：155.2(H)×89.4(V)×6.1(D) mm
Bezel Area：146.2(H)×82.12(V) mm
Treatment：Antiglare
Luminance：550 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：15/25 (Typ.)(Tr/Td)
Viewing Angle：75/75/50/70 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K
Light Source：WLED[3S14P], 20K hours, W/O Driver
Weight： 130±10g
Designed For： Automotive Display,
Frame Rate：-
Touch Panel：Without
Interface Type： 60 pinsTTL (1 ch, 6-bit), FPC
Power Supply：3.3/3.3/9.5/17.0/-8.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE)
Environment： Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
