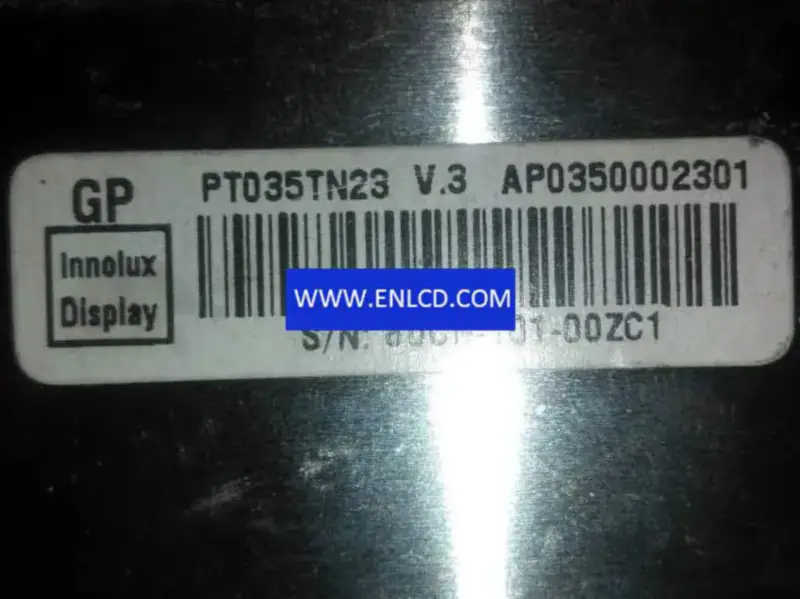

Innolux PT035TN23 V.3 LCD panel

Panel Brand：Chimei Innolux
Panel Model：PT035TN23 V.3
Panel Size：3.5 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：320(RGB)×240 , QVGA
Pixel Format：RGB Vertical Stripe
Display Area：70.08(W)×52.56(H) mm
Bezel Opening：-
Brightness：-
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：65/65/50/65 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：9/16 (Typ.)(Tr/Td)
Display Colors：262K
Lamp Type：WLED
Frequency： 60Hz
Touch Screen：Without
Panel Weight： TBD
Application： Digital Still Camera, Portable Navigation, Pocket TV, VOIP Phone, Video Door Phone,
Environment： Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 80 °C
