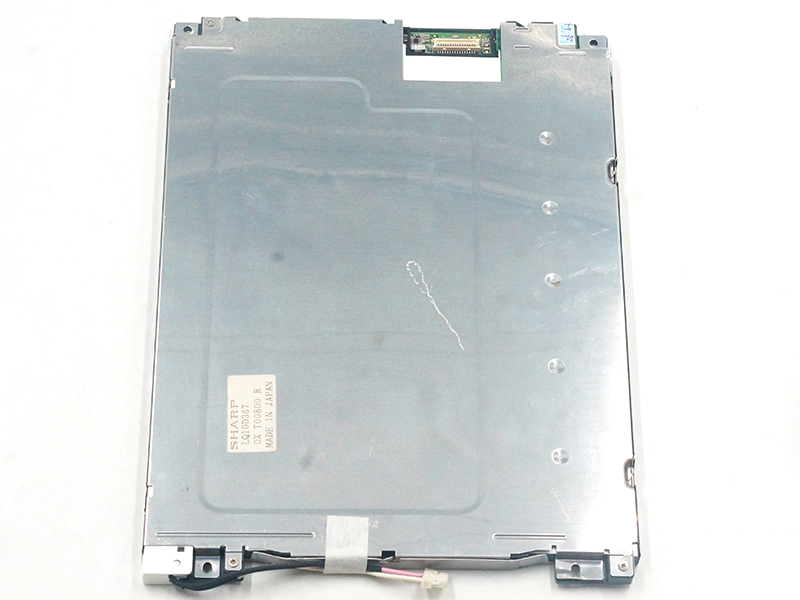

Sharp LQ10D367 LCD

Specification

Model P/N:LQ10D367 2
Brand:Sharp
Diagonal Size:10.4"
Resolution:640(RGB)×480, VGA 76PPI
Contrast Ratio:100:1 (Min.) (TM)
Viewing Angle:70/70/40/70 (Typ.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:211.2(W)×158.4(H) mm
Bezel Opening:216.2(W)×163.4(H) mm
Outline Dim:246.5(H)×179.4(V) ×11(D) mm
Treatment:Antiglare (Haze 28%), Hard coating (3H), Antireflection
Luminance:200 cd/m² (Typ.)
View Direction:6 o'clock
Response Time:20/40 (Typ.)(Tr/Td)
Operating Mode:TN, Normally White, Transmissive
Support Color:262K
Light Source:CCFL [1 pcs] , 25K hours , W/O Driver
Weight:625g (Typ.)
Designed For:Industrial
Frame Rate:-
Touch Panel:Without
Interface Type:Parallel RGB (1 ch, 6-bit) , 31 pins Connector
Power Supply:5.0V (Typ.)
