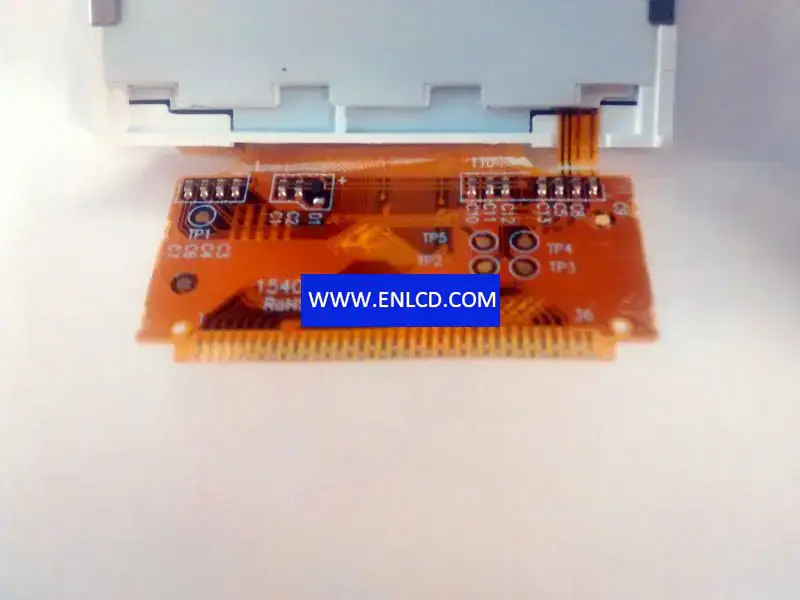

Manufacturer：TIANMA
Model Name：TM022GBH011 Compatible
Screen Size：2.2 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：176(RGB)×220 (QCIF+)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 34.848 × 43.56 (H×V)
Outline(mm)：41.7 × 56.16 (H×V×D)
Bezel Area(mm)： –
Treatment： Clear, Hard coating (3H)
Luminance：250 cd/m2 (Typ.)
Contrast Ratio：350 : 1 (Typ.) (TM)
Viewing Angle： 45/45/40/20 (Typ.)(CR≥10)
Response： 25 (Typ.)(Tr+Td) ms
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：65K/262K 60%(CIE1931)
Backlight：1S3PWLED, 20K hours, No Driver
Mass： 25.0g (Typ.)
Used for： Mobile Phone,
Refresh Rate：-
Touchscreen：Embeded (4-wire Resistive)
Signal Type：CPU, FPC, 36 pins
Voltage Supply：2.8V (Typ.)(VDD)
Max. Ratings：Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
