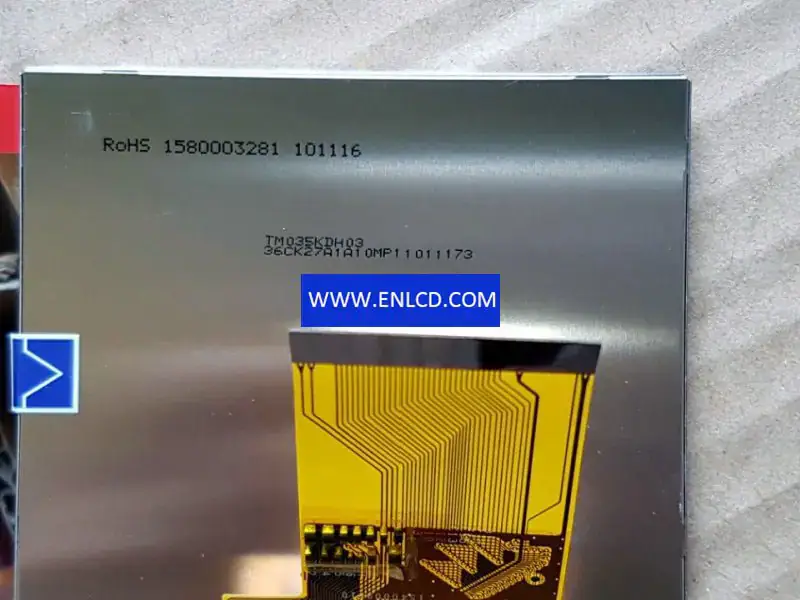

Brand：TIANMA
Model：TM035KDH03-36
Diagonal Size：3.5 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：320(RGB)×240[QVGA]
Configuration：RGB Vertical Stripe
Active Area：70.08(H)×52.56(V) mm
Outline Dim.：76.9(H)×63.9(V)×3.35(D) mm
Bezel Area：72.88(H)×55.36(V) mm
Treatment：Antiglare
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：12 o'clock
Response Time：20 (Typ.)(Tr+Td)
Viewing Angle：70/70/60/70 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：16.7M 50%(CIE1931)
Light Source：WLED[6S1P]， 20K hours， W/O Driver
Weight：29.3g (Typ.)
Designed For： Digital Still Camera, Digital Video Camera,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 54 pinsDigital RGB (8/24-bit) + SPI， CCIR601/656， FPC
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
