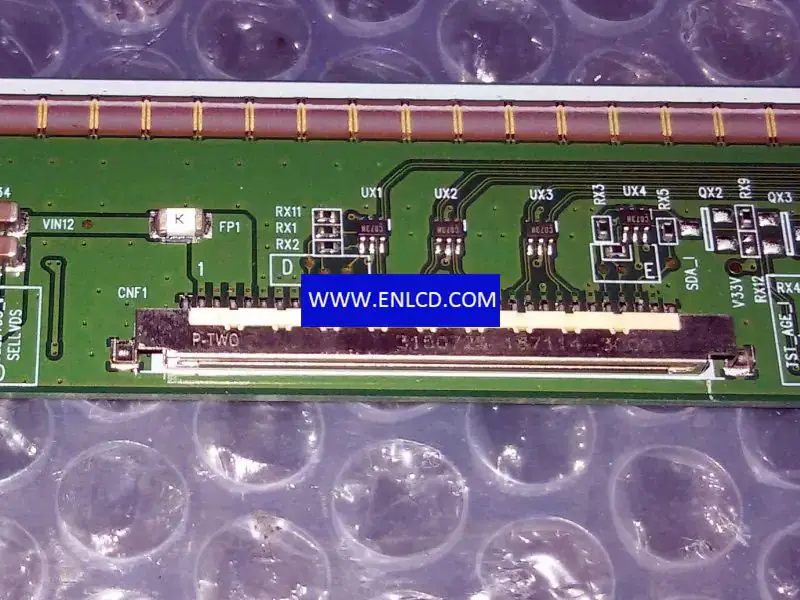

Innolux V320BJ7-PE1 LCD panel

Brand：Innolux
Model：V320BJ7-PE1
Diagonal Size：31.5 inch
Type：a-Si TFT-LCD, CELL
Pixel Format：1366(RGB)×768[WXGA]
Configuration： RGB Vertical Stripe
Active Area：697.685(H)×392.256(V) mm
Outline Dim.：716.685(H)×409.856(V)×1.3(D) mm
Bezel Area：-
Treatment：Antiglare (Haze 2%), Hard coating (2H)
Luminance：0 cd/m2
Contrast Ratio： 1400:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：-
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Operating Mode：MVA, Normally Black
Plate Thickness：0.50+0.50 mm
Transmittance：6.86% (Typ.)(with Polarizer)
Support Color：16.7M
Light Source：No B/L
Weight： 850g (Typ.)
Designed For： TV Sets,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 8-bit), Connector
Power Supply：12.0V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
