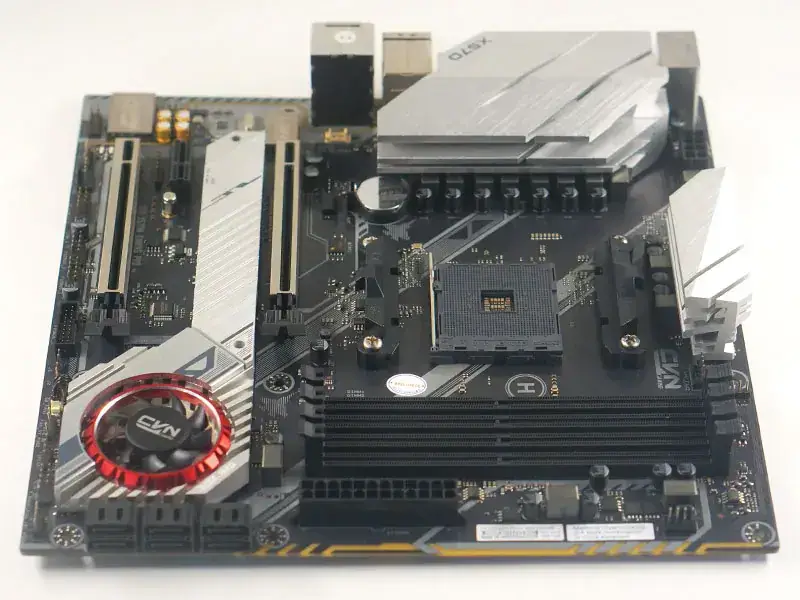

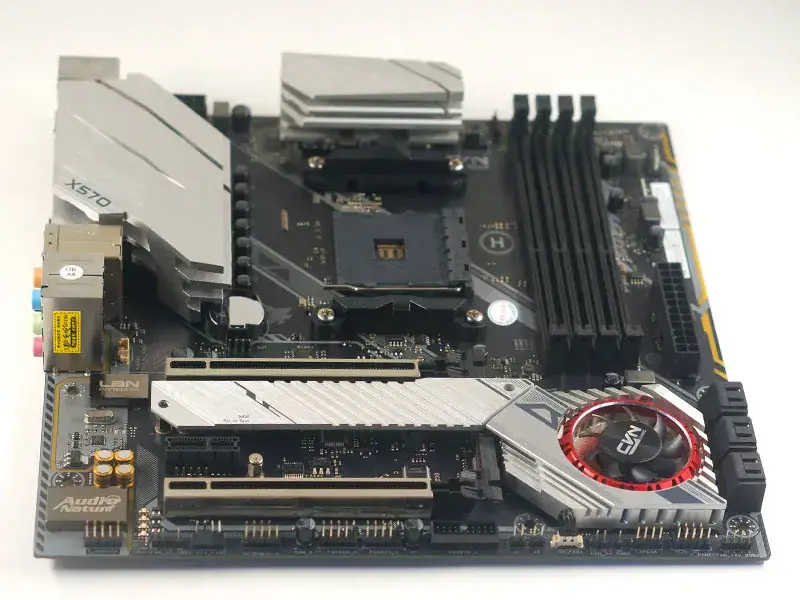

Colorful X570M GAMING PRO Hauptplatine

Colorful CVN X570M GAMING PRO V14 Motherboard

Spezifikationen

Brand name: Colorful
Item Model: CVN X570M GAMING PRO V14
Chipsatz: AMD X570
CPU Type: AMD AM4 zen 2000/3000 series
Mit CPU: nein
RAM-Bank: 4×DDR4 DIMM
RAM channel: 2
Maximale Speicherkapazität:64GB
Memory description:

Equipped with 2nd-GEN Ryzen processor:
Support DDR4 2933/2800/2666/2400/2133MHz specification memory;
Equipped with 3rd-GEN Ryzen processors:
Support DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHz specification memory

PCI-E type: PCI-E 4.0,1×PCI-E X16,2×PCI-E X4,
Speichersteckplätze: 2×M.2,6×SATA III
Festplattenschnittstelle:SATA
FSB / HT:Mhz
I/O Interface: 2×USB3.1 Gen1(3×Type-A),6×USB3.1 Gen1 Type-A,6×USB2.0
Anschlüsse:HDMI+Display Port
Formfaktor: Micro ATX
Dimension: 24.5×24.5cm
Formfaktor:CEB
Anwendung: Desktop

Feature Highlights:

◆Supports  AMD AM4 socket Ryzen 2000 and 3000 series Processors
◆Supports Dual Channel DDR4 memory
*when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory
*when using Ryzen 3000 series processor,support 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory
*Warm Tip: Memory Overclocking also depends on the performance of the CPU and the memory itself
◆6*SATA3.0 ports
◆2*M.2 slots
*Support MSATA and PCI-e Gen4 x4 SSD
◆RTL8111H 1000M LAN chipset
◆Onboard 8-channel audio chipset
◆DP+HDMI ports
◆2*4PIN 12V RGB LED headers
◆2*3PIN 5V RGB LED headers
◆2*USB3.1 GEN2(TYPE-A) ,6*USB3.1 GEN1(5*TYPE-A,1*TYPE-C) & 6*USB2.0 ports(include headers)
◆misty-white PCB technology
◆Support PCI Express4.0 standard and 2-Way AMD CrossFire technology
