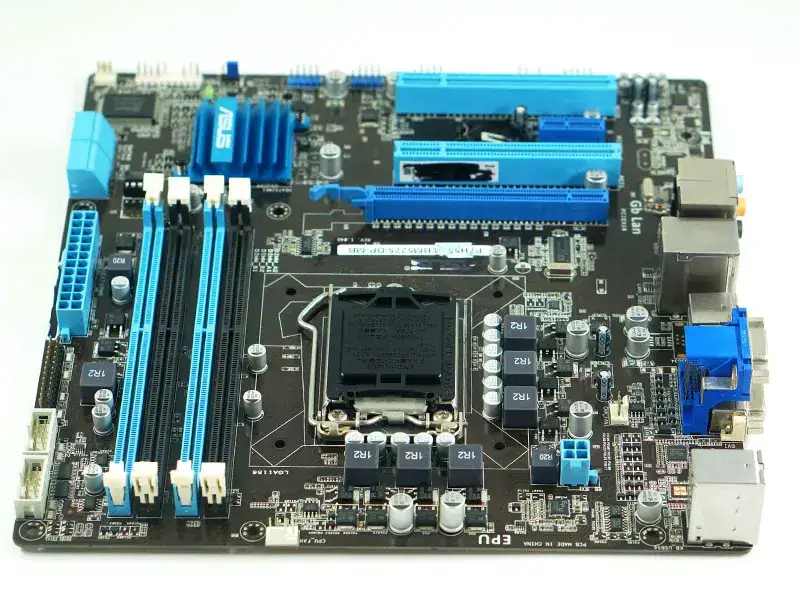

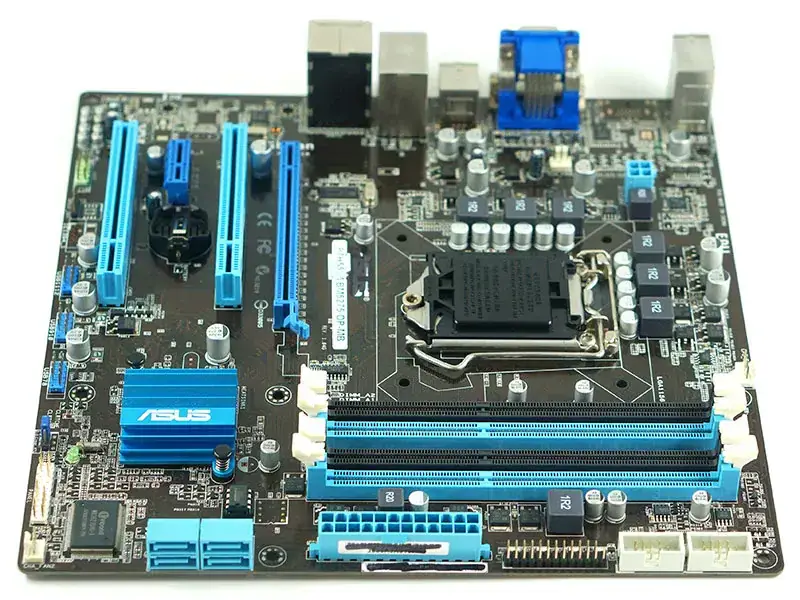

Name: Asus P7H55-M/BM5275/DP Hauptplatine
Brand: asus
SKU: ENLCD0003400
Price: 61.38 EUR
Availability: InStock

Asus P7H55-M/BM5275/DP Hauptplatine

Lagerbestand:

Marke: asus

SKU:{{ product.sku }}

Modell?: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Menge:

Produktdetails

Modell
Hersteller	ASUS
Herstellerteil #	P7H55-M/CG5275/DP
Leistung
Produkttyp	Systemplatine
Formfaktor	Micro ATX
CPU-Sockel-Typ	LGA 1156
Unterstützte CPU(s)	Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipsatz	Intel H55 Express
Anzahl der Speichersteckplatz(e)	4
Number of Memory Channel(s)	2
Unterstützte(r) Speicherstandard(e)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-8500 (DDR3-1066)
Maximal installierter Speicher	16 GB
Erweiterungssteckplätze	PCI-E 2.0 x1 PCI-E 2.0 x16
Expansion Slots Details	1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 (2.5GT/s, gray slots) 1 x PCI
Speicher-Controller	SATA 3.0 Gbps
Audio-Controller	Realtek ALC887
Network	Gigabit-Ethernet
Anschlüsse/Ports	Audio-In Audio-Ausgang Chassis Fan Connector CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 USB 1.1 USB 2.0
Connectors/Ports Details	Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port 1 x D-Sub 1 x HDMI 1 x S/PDIF Out (Optical) 1 x LAN(RJ45) port 6 x USB 2.0/1.1 3 x Jack (8-channel) Audio I/O Internal I/O Connectors 3 x USB connectors support additional 6 USB ports 1 x IDE connector 6 x SATA connectors 1 x CPU Fan connector (1×4-pin) 1 x Chassis Fan connector (1×3-pin) 1 x LPT connector 1 x S/PDIF Out Header Front panel audio connector 1 x COM connector 1 x Clear CMOS jumper 1 x 24-pin ATX Power connector 1 x 8-pin ATX 12V Power connector System Panel
